60 Series Speaker Spacer & Adapter

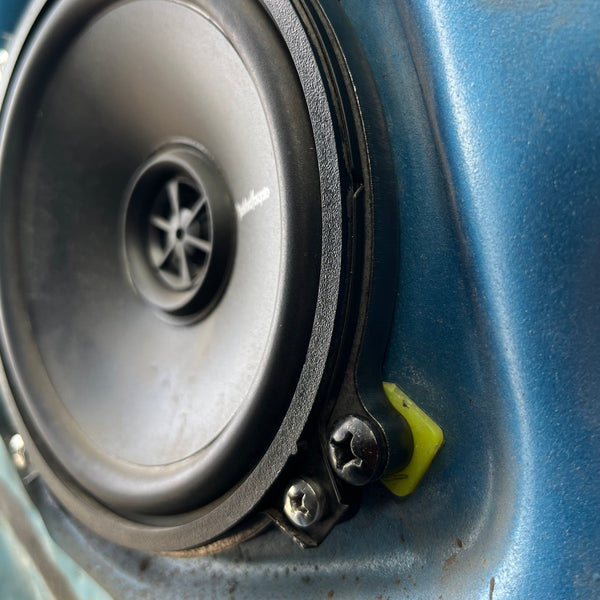

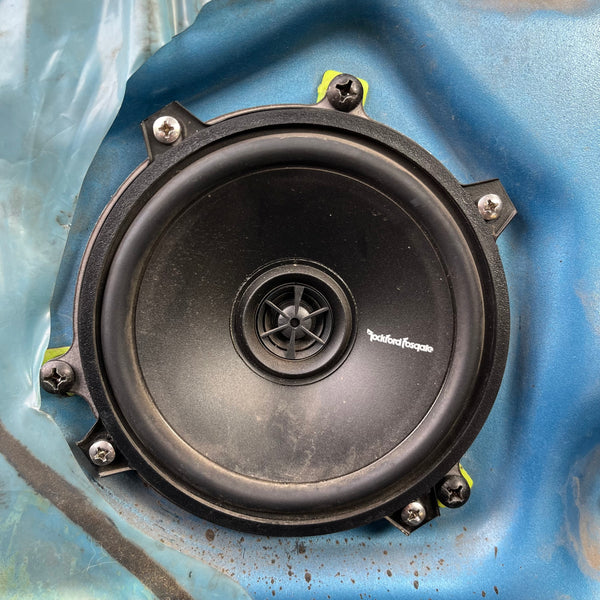

Need to replace the old speakers in the front doors of your 60 Series truck? Toyota used an odd bolt pattern that modern speakers won't attach to. The depth between the door metal and the window glass is also very shallow - too deep of a speaker means you won't be able to fully roll your window down. This piece solves both problems at once. First, it bolts to the odd Toyota pattern and gives you threaded holes to mount modern speakers. Second, it spaces the speaker out 1/4" to offer more depth in clearing the window glass, while still keeping the speaker from hitting the grille in the door card.

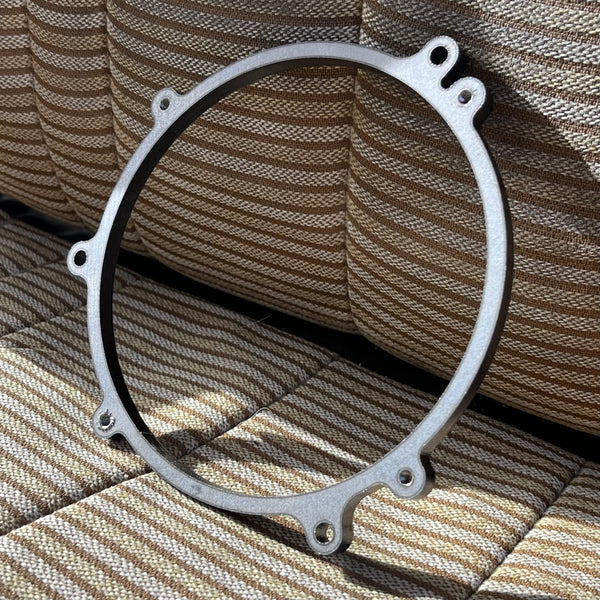

These Spacer/Adapters are made from robust 1/4" plate aluminum, so they will be strong enough to hold up to any abuse. There are pass-through holes for the screws that attach the spacer to the door, and threaded holes to attach the new speaker. No trying to spin nuts on the back, the hardware threads right in! Four stainless steel JIS screws for attaching the speaker are included.
Notes:
- Sold as a pair, eight screws for speakers included.
- Works for all years and variants of the 60 Series.
- For front door speakers only.
- Screws or grommets for attaching the spacer to the door are not included. Screw part number is 90164-50005. Grommet part number is 90189-06043. Required quantity is three of each per side, buy at your own risk.
- Aluminum is unpainted.
- Maximum speaker depth with spacer = 2".
Speakers that are known to work:
Pioneer TS-G1245R
Rockford Fosgate R1525x2
Memphis Audio SRX52V
Retro Sound 5.25
Speakers that do NOT work:
JL Audio C1-525x
MXT Thunder52
Morel Hybrid Integra 52
Kenwood Excelon KFC-X134
Hertz X130
Kenwood KFC-1396PS
Morel Maximo Ultra 502 MkII
Morel Tempo Ultra Integra 502 MkII
Focal Performance 130AC
